Description
Important Note:This kit does not include any sensors. If you want to add our best-selling biosignals sensors to this kit, click here or go to our Biosignals Kit Builder.

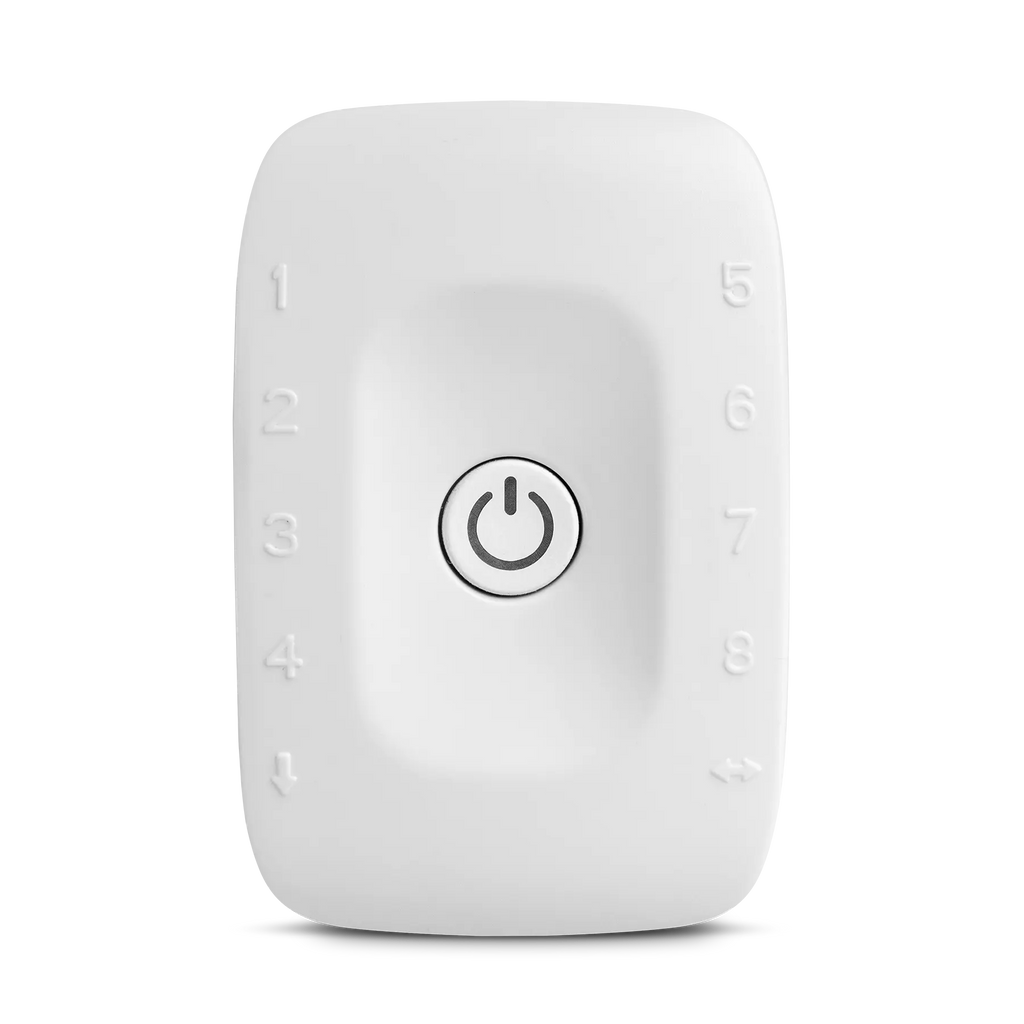

The 8-Channel biosignalsplux kit was designed to keep advanced research applications on budget while allowing wireless and high-quality signal acquisitions without limitations.

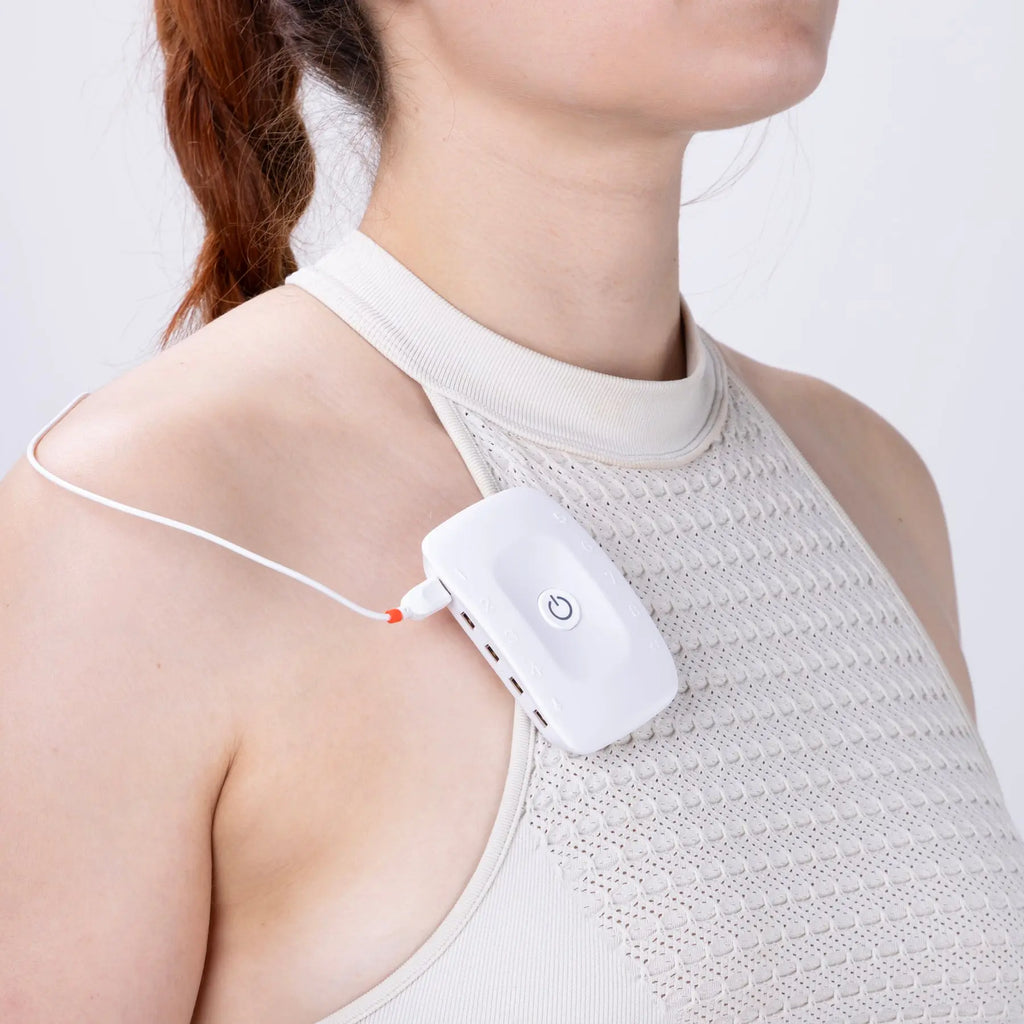

It enables up to ~10h of signal streaming at up to 3000Hz sampling rate and 16-bit resolution per channel while recording data from up to 8 sensors simultaneously. Due to its compact design, this professional biosignals kit can even be used for signal acquisition in dynamic conditions. Additionally, the Video Synchronization add-on allows the users to record videos during signal acquisition sessions to visualize all acquired signals synchronously with the recorded video for post-acquisition analysis purposes (e.g. movement analysis).
Kit Content
Hardware
Software
- OpenSignals (r)evolution (Windows, macOS, Linux)
- Video Synchronization
- OpenSignals Mobile (Android)
- Application Programming Interfaces (APIs) & Sample Code on GitHub
Specifications
- Analog ports: 8 generic inputs
- Auxiliary Ports: 1 ground & 1 digital I/O
- Resolution: Up to 16-bit (per channel)
- Sampling Rate: Up to 3kHz (per channel)
- Internal Memory: Not included (16GB optionally available)
- Battery Life: ~10h streaming; ~24h logging
- Communication: Bluetooth Class II
- Range: Up to ~10m (extendable)
- Size: 85x54x10mm
- Weight: 45g (without sensors)
- Color: White
Downloads
- biosignalsplux Quickstart Guide
- biosignalsplux User Manual
- 8-Channel Hub Datasheet
- Opensignals & Add-Ons User Manual
- OpenSignals (r)evolution (Windows, macOS, Linux)
